Epitrochoid

Function: calc[EpiTrochoid] - animation of an  epitrochoid

Calling Sequence:

EpiTrochoid(a, b, c, N, n)
EpiTrochoidComp (a, b, c, N, n, p[1], p[2])

Parameters:

a -   numbers

N - number of `+`(`*`(2, `*`(Pi)))

n -   number of frames
p[1], p[2] -   names


Description:

  • EpiTrochoid  animates the epitrochoid traced by a point P on a spoke of a wheel of radius b as it rolls outside a circle of radius a. The distance of P from the center of the rolling wheel is c. The parametric equations are


x = `+`(`*`(`+`(a, b), `*`(cos, `*`(t))), `-`(`/`(`*`(c, `*`(cos, `*`(`+`(a, `-`(b)), `*`(t)))), `*`(b)))) , y = `+`(`*`(`+`(a, b), `*`(sin, `*`(t))), `-`(`/`(`*`(c, `*`(sin, `*`(`+`(a, `-`(b)), `*`(t)))), `*`(b))))

  • EpiTrochoidComp compares in an array two different ways of constructing an epitrochoid. Typing p[1] and  p[2] return the two plots separately


Examples:

> restart: with(calc):

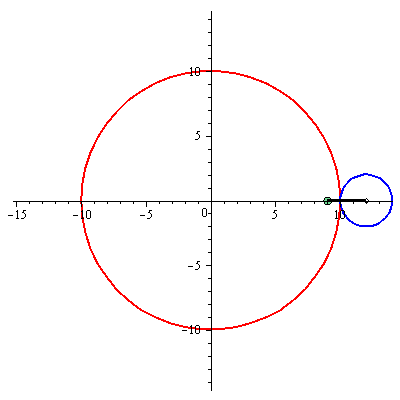

> EpiTrochoid(10,2,3,1,20);


Plot_2d

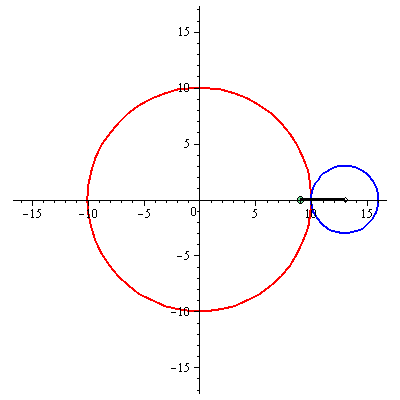

> EpiTrochoid(10,3,4,3,20);


Plot_2d


> a:=3:b:=4:c:=3.5: N:=b: n:=60:

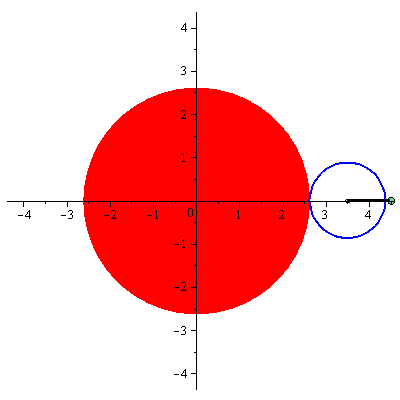

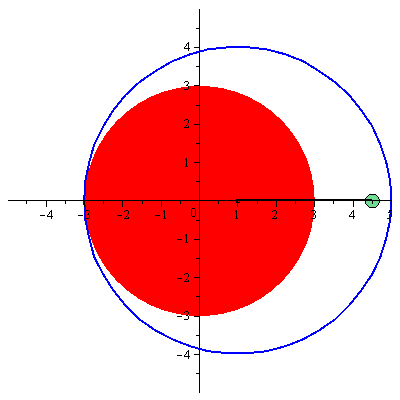

> EpiTrochoidComp(a,b,c,N,n,p1,p2);


Plot_2d Plot_2d
